The main plug-in application class. More...

#include <DoxyBlocks.h>

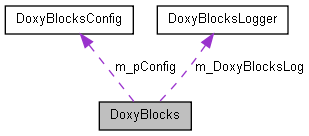

Collaboration diagram for DoxyBlocks:

Public Member Functions
	DoxyBlocks ()
virtual	~DoxyBlocks ()
virtual int	Configure ()
virtual int	GetConfigurationPriority () const
virtual int	GetConfigurationGroup () const
virtual cbConfigurationPanel *	GetConfigurationPanel (wxWindow *parent)
virtual cbConfigurationPanel *	GetProjectConfigurationPanel (wxWindow parent, cbProject project)
virtual void	BuildMenu (wxMenuBar *menuBar)
virtual void	BuildModuleMenu (const ModuleType type, wxMenu menu, const FileTreeData data=0)
virtual bool	BuildToolBar (wxToolBar *toolBar)
void	OnDialogueDone (ConfigPanel *pDlg)
	Save prefs before the dialogue closes.
Protected Member Functions
virtual void	OnAttach ()
virtual void	OnRelease (bool appShutDown)
Private Member Functions

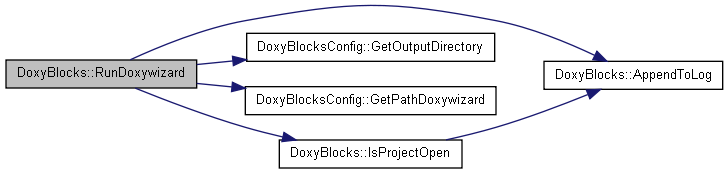

bool	RunDoxywizard (void)
	Run doxywizard. Load the project's doxyfile, if one exists.
void	BlockComment (void)
	Insert a comment block at the current line.
void	LineComment (void)
	Insert an inline comment at the current cursor position.
void	ExtractProject ()
	Extract and compile documentation for the currently active project.
void	WriteConfigFiles (cbProject *prj, wxString sPrjName, wxString sPrjPath, wxString sDoxygenDir, wxFileName fnDoxyfile, wxFileName fnDoxygenLog)
	Write the doxygen configuration and log files.
int	GenerateDocuments (cbProject *prj)
	Manage the generation of the doxygen configuration and log files.
void	AppendToLog (const wxString &sText, int flag=LOG_NORMAL, bool bReturnFocus=true) const
	Append a message to DoxyBlocks' log window.
bool	IsProjectOpen () const
	Check whether a project is open.
wxString	GetInputList (cbProject *prj, wxFileName fnDoxyfile)
	Get the list of input files for the doxygen configuration file.
void	RunHTML ()
	Run the HTML documentation.
void	RunCHM ()
	Get parameters and call RunCompiledHelp() to run the Compiled Help documentation.
void	RunCompiledHelp (wxString sDocPath, wxString sPrjName)
	Run the Compiled Help documentation.
wxString	GetDocPath () const
	Get the document path.
wxString	GetProjectName ()
	Get the project name.
void	GetBlockCommentStrings (int iBlockComment, wxString &sStartComment, wxString &sMidComment, wxString &sEndComment)
	Initialise the comment structure strings to the selected style.
void	StartComment (cbStyledTextCtrl *control, int &iPos, int iBlockComment, wxString sStartComment, wxString sMidComment, wxString sTagBrief, wxString sIndent)
	Insert the tags that begin a comment block in the selected style.
void	CommentFunction (cbStyledTextCtrl *control, int &iPos, wxString sMidComment, wxString sTagParam, wxString sTagReturn, wxString sIndent, wxString sParams, wxString sReturn, wxString sFunction)
	Add comment lines for a function's parameters and return type in the selected style.
void	AddCommentLine (cbStyledTextCtrl *control, int &iPos, wxString sText)
	Add a line to a comment block in the selected style.
wxString	ProcessReturnString (wxString sReturn, wxString sFunction)
void	CheckForAutoVersioning ()
	Check whether the AutoVersioning plug-in is active.
wxString	GetAutoVersion ()
	Get the Autoversion string.
void	OnProjectActivate (CodeBlocksEvent &event)
	Hooks the IDE's project activated event.
void	OnEditorOpen (CodeBlocksEvent &event)
	Hooks the editor open event.
void	OnEditorClose (CodeBlocksEvent &event)
	Hooks the editor close event.
void	OnUpdateUI (wxUpdateUIEvent &event)
	An UPDATE_UI event was raised.
void	OnTextURL (wxTextUrlEvent &event)
	A URL was clicked in the log window.
void	LoadSettings ()
	Load configuration settings.
void	SaveSettings ()
	Save configuration settings.
wxString	ValidateRelativePath (wxString path)
	Validate the doxygen sub-directory name, removing dots, slashes, colons and tildes.
void	ReadPrefsTemplate ()
	Read the settings template.
void	WritePrefsTemplate ()
	Write the settings template.
	DECLARE_EVENT_TABLE ()
	Declare the event table.
Private Attributes
wxToolBar *	m_pToolbar
	The plug-in toolbar.
DoxyBlocksLogger *	m_DoxyBlocksLog
	The log tab in the message pane.
int	m_LogPageIndex
	The index of the log tab.
bool	m_bAutoVersioning
	Whether Autoversioning is active for the current project.
wxString	m_sAutoVersion
	The autoversion string - MAJOR.MINOR.BUILD.
wxString	m_sVersionHeader
	The Autoversion header path for the current project.
DoxyBlocksConfig *	m_pConfig
	Configuration object.

Detailed Description

The main plug-in application class.

Constructor & Destructor Documentation

DoxyBlocks::DoxyBlocks ( )

Constructor.

DoxyBlocks::~DoxyBlocks ( ) [virtual]

Destructor.

Member Function Documentation

void DoxyBlocks::AddCommentLine	(	cbStyledTextCtrl *	control,
		int &	iPos,
		wxString	sText
	)			`[private]`

Add a line to a comment block in the selected style.

Parameters:

	control	cbStyledTextCtrl* The editor's wxStyledTextControl.
	iPos	int& The current editor position.
	sText	wxString The text to add to the comment block.

Returns:: void

void DoxyBlocks::AppendToLog	(	const wxString &	sText,
		int	flag = `LOG_NORMAL`,
		bool	bReturnFocus = `true`
	)			const `[private]`

Append a message to DoxyBlocks' log window.

Parameters:

	sText	wxString& The text to display.
	flag	int A flag controlling the entry's style. Defaults to LOG_NORMAL.
	bReturnFocus	bool Whether to return the focus to the editor window after logging.

The style flags are:

LOG_NORMAL - normal text
LOG_WARNING - italic text
LOG_ERROR - bold red text

void DoxyBlocks::BuildMenu ( wxMenuBar * menuBar ) [virtual]

This method is called by Code::Blocks and is used by the plugin to add any menu items it needs on Code::Blocks's menu bar.
It is a pure virtual method that needs to be implemented by all plugins. If the plugin does not need to add items on the menu, just do nothing ;)

Parameters:

menuBar

the wxMenuBar to create items in

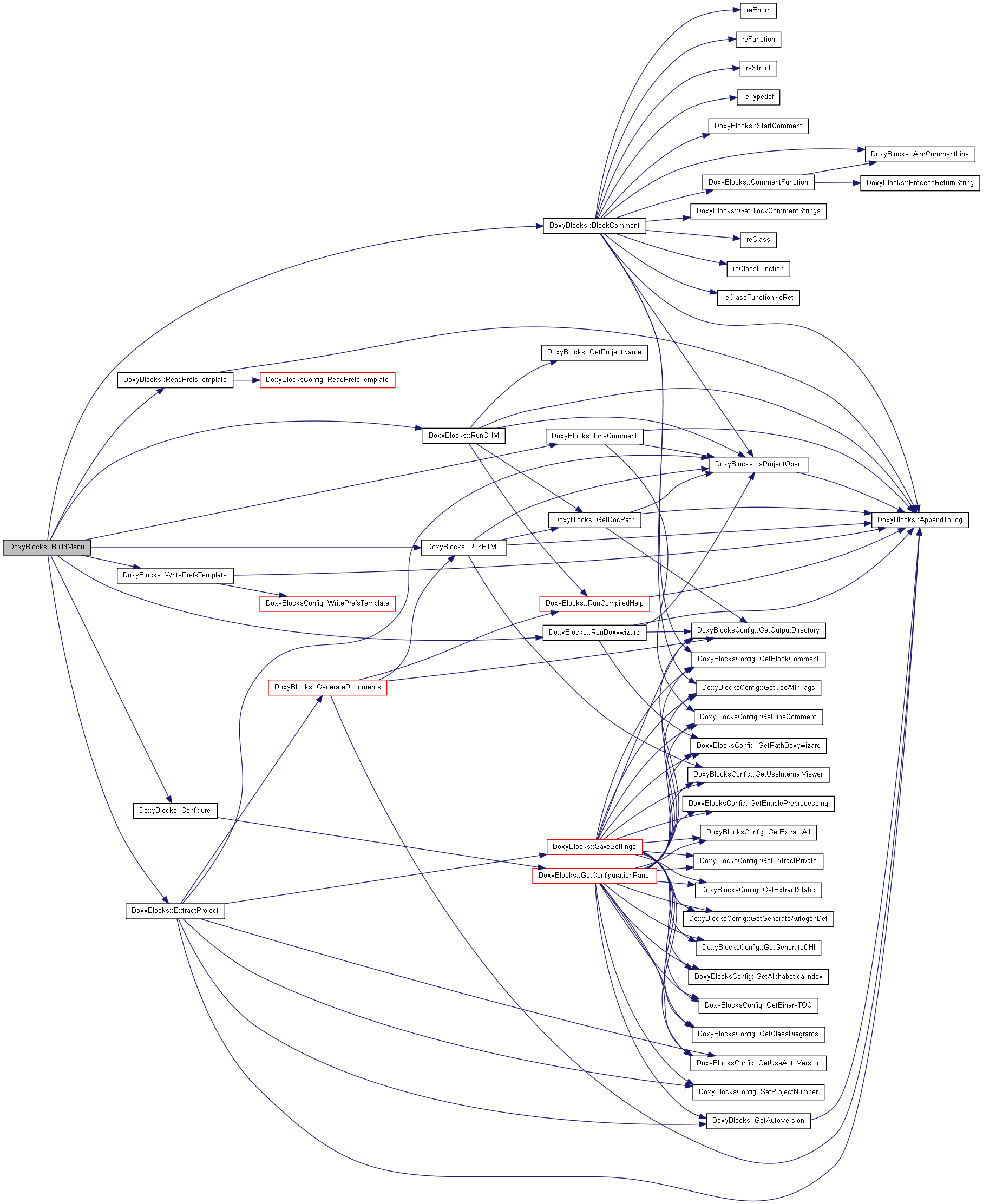

Here is the call graph for this function:

void DoxyBlocks::BuildModuleMenu	(	const ModuleType	type,
		wxMenu *	menu,
		const FileTreeData *	data = `0`
	)			`[virtual]`

This method is called by Code::Blocks core modules (EditorManager, ProjectManager etc) and is used by the plugin to add any menu items it needs in the module's popup menu. For example, when the user right-clicks on a project file in the project tree, ProjectManager prepares a popup menu to display with context sensitive options for that file. Before it displays this popup menu, it asks all attached plugins (by asking PluginManager to call this method), if they need to add any entries in that menu. This method is called.
If the plugin does not need to add items in the menu, just do nothing ;)

Parameters:

	type	the module that's preparing a popup menu
	menu	pointer to the popup menu
	data	pointer to FileTreeData object (to access/modify the file tree)

bool DoxyBlocks::BuildToolBar ( wxToolBar * toolBar ) [virtual]

This method is called by Code::Blocks and is used by the plugin to add any toolbar items it needs on Code::Blocks's toolbar.
It is a pure virtual method that needs to be implemented by all plugins. If the plugin does not need to add items on the toolbar, just do nothing ;)

Parameters:

toolBar

the wxToolBar to create items on

Returns:: The plugin should return true if it needed the toolbar, false if not

Here is the call graph for this function:

void DoxyBlocks::CheckForAutoVersioning ( ) [private]

Check whether the AutoVersioning plug-in is active.

This function iterates over the Extensions node of the project's .cbp file looking for the AutoVersioning node. It is run on project activation and sets the global flag bAutoVersioning.

Here is the call graph for this function:

void DoxyBlocks::CommentFunction	(	cbStyledTextCtrl *	control,
		int &	iPos,
		wxString	sMidComment,
		wxString	sTagParam,
		wxString	sTagReturn,
		wxString	sIndent,
		wxString	sParams,
		wxString	sReturn,
		wxString	sFunction
	)			`[private]`

Add comment lines for a function's parameters and return type in the selected style.

Parameters:

	control	cbStyledTextCtrl* The editor's wxStyledTextControl.
	iPos	int& The current editor position.
	sMidComment	wxString The comment tag that starts each line in a block.
	sTagParam	wxString The doxygen tag for a parameter description.
	sTagReturn	wxString The doxygen tag for a return value description.
	sIndent	wxString A string of spaces matching the function's indent level.
	sFunction	wxString A string containing the the name of the function being documented.
	sParams	wxString A string containing the parameters of the function being documented.
	sReturn	wxString A string containing the return type of the function being documented.

Returns:: void

Here is the call graph for this function:

int DoxyBlocks::Configure ( ) [virtual]

Invoke configuration dialog.

Returns:: The configuration dialogue's return value.

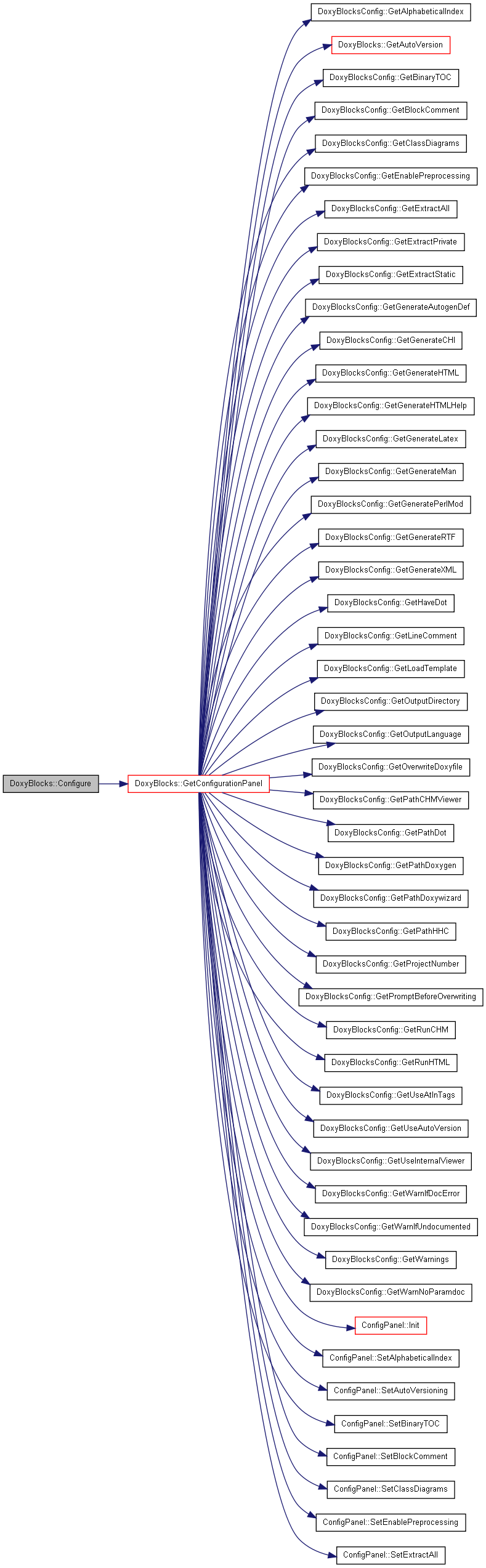

Here is the call graph for this function:

int DoxyBlocks::GenerateDocuments ( cbProject * prj ) [private]

Manage the generation of the doxygen configuration and log files.

Parameters:

prj

cbProject* The project.

Returns:: int 0 on success, -1 on failure.

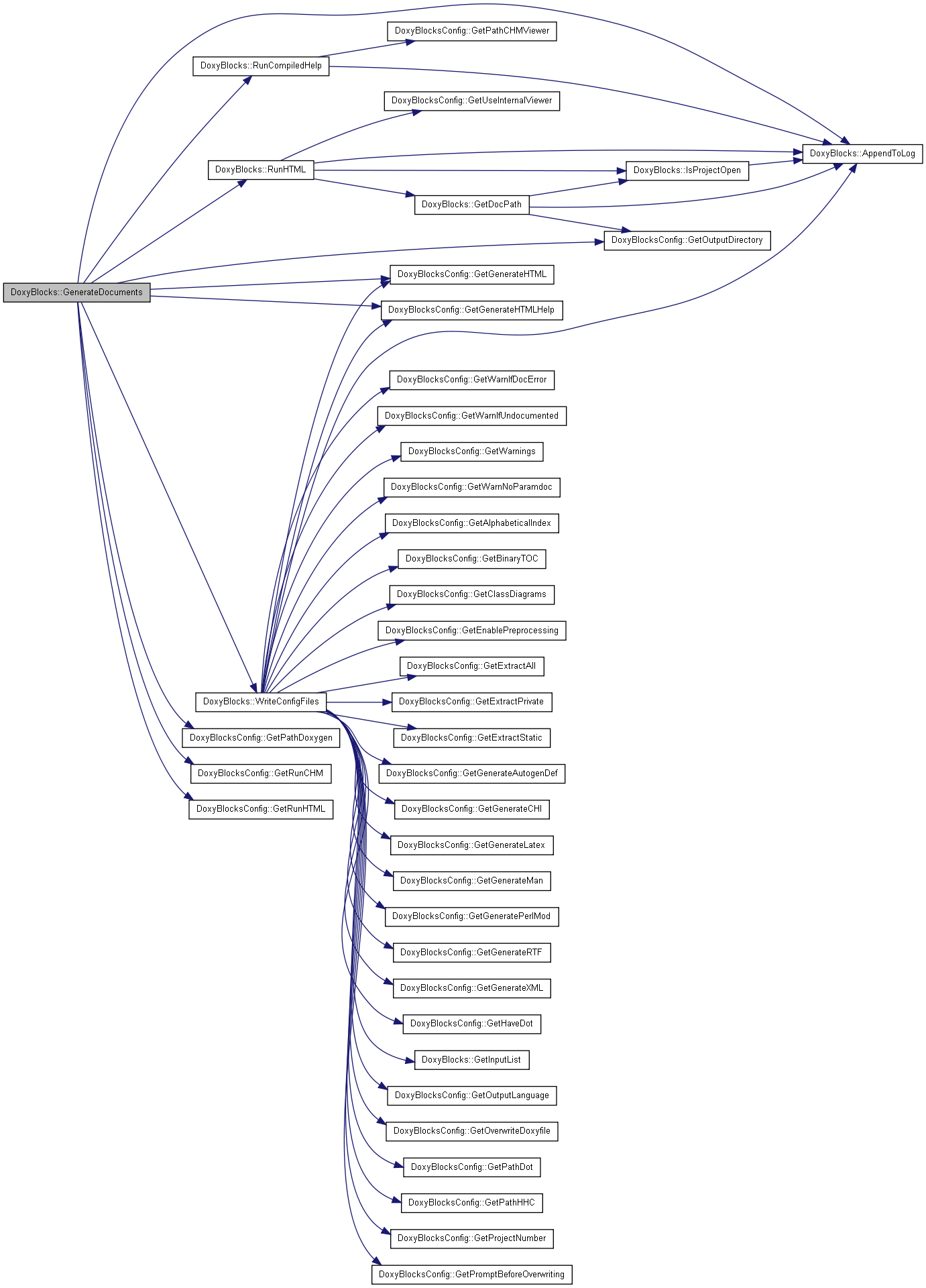

Here is the call graph for this function:

wxString DoxyBlocks::GetAutoVersion ( ) [private]

Get the Autoversion string.

Returns:: wxString Version string in the form MAJOR.MINOR.BUILD.

Here is the call graph for this function:

void DoxyBlocks::GetBlockCommentStrings	(	int	iBlockComment,
		wxString &	sStartComment,
		wxString &	sMidComment,
		wxString &	sEndComment
	)			`[private]`

Initialise the comment structure strings to the selected style.

Parameters:

	iBlockComment	int The selected comment style.
	sStartComment	wxString The comment tag that starts a block.
	sMidComment	wxString The comment tag that starts each line in a block.
	sEndComment	wxString& The comment tag that ends a block.

Returns:: void

virtual int DoxyBlocks::GetConfigurationGroup ( ) const [inline, virtual]

Return the configuration group for this plugin. Default is cgUnknown. Notice that you can logically OR more than one configuration groups, so you could set it, for example, as "cgCompiler | cgContribPlugin".

Returns:: The configuration group.

cbConfigurationPanel * DoxyBlocks::GetConfigurationPanel ( wxWindow * parent ) [virtual]

Return plugin's configuration panel.

Parameters:

parent

The parent window.

Returns:: A pointer to the plugin's cbConfigurationPanel. It is deleted by the caller.

virtual int DoxyBlocks::GetConfigurationPriority ( ) const [inline, virtual]

Return the plugin's configuration priority. This is a number (default is 50) that is used to sort plugins in configuration dialogs. Lower numbers mean the plugin's configuration is put higher in the list.

Returns:: The plugin's configuration priority.

wxString DoxyBlocks::GetDocPath ( ) const [private]

Get the document path.

Returns:: wxString The document path.

Here is the call graph for this function:

wxString DoxyBlocks::GetInputList	(	cbProject *	prj,
		wxFileName	fnDoxyfile
	)			`[private]`

Get the list of input files for the doxygen configuration file.

Parameters:

	prj	cbProject* The project.
	fnDoxyfile	wxFileName Doxyfile filename object.

Returns:: wxString The input file list.

This function queries the cbProject object for a list of files actually attached to the project. Other files in the project directory are ignored.

cbConfigurationPanel * DoxyBlocks::GetProjectConfigurationPanel	(	wxWindow *	parent,
		cbProject *	project
	)			`[virtual]`

Return plugin's configuration panel for projects. The panel returned from this function will be added in the project's configuration dialog.

Parameters:

	parent	The parent window.
	project	The project that is being edited.

Returns:: A pointer to the plugin's cbConfigurationPanel. It is deleted by the caller.

Note:: This function's body was moved to Doxygen.cpp to prevent the disabled variables causing warnings in doxygen. Warnings will occur if there is a single declaration/implementation and variables are disabled, as doxygen can't find them.

wxString DoxyBlocks::GetProjectName ( ) [private]

Get the project name.

Returns:: wxString The project name.

bool DoxyBlocks::IsProjectOpen ( ) const [private]

Check whether a project is open.

Returns:: bool true if a project is open, false otherwise.

Here is the call graph for this function:

void DoxyBlocks::LoadSettings ( ) [private]

Load configuration settings.

Returns:: void

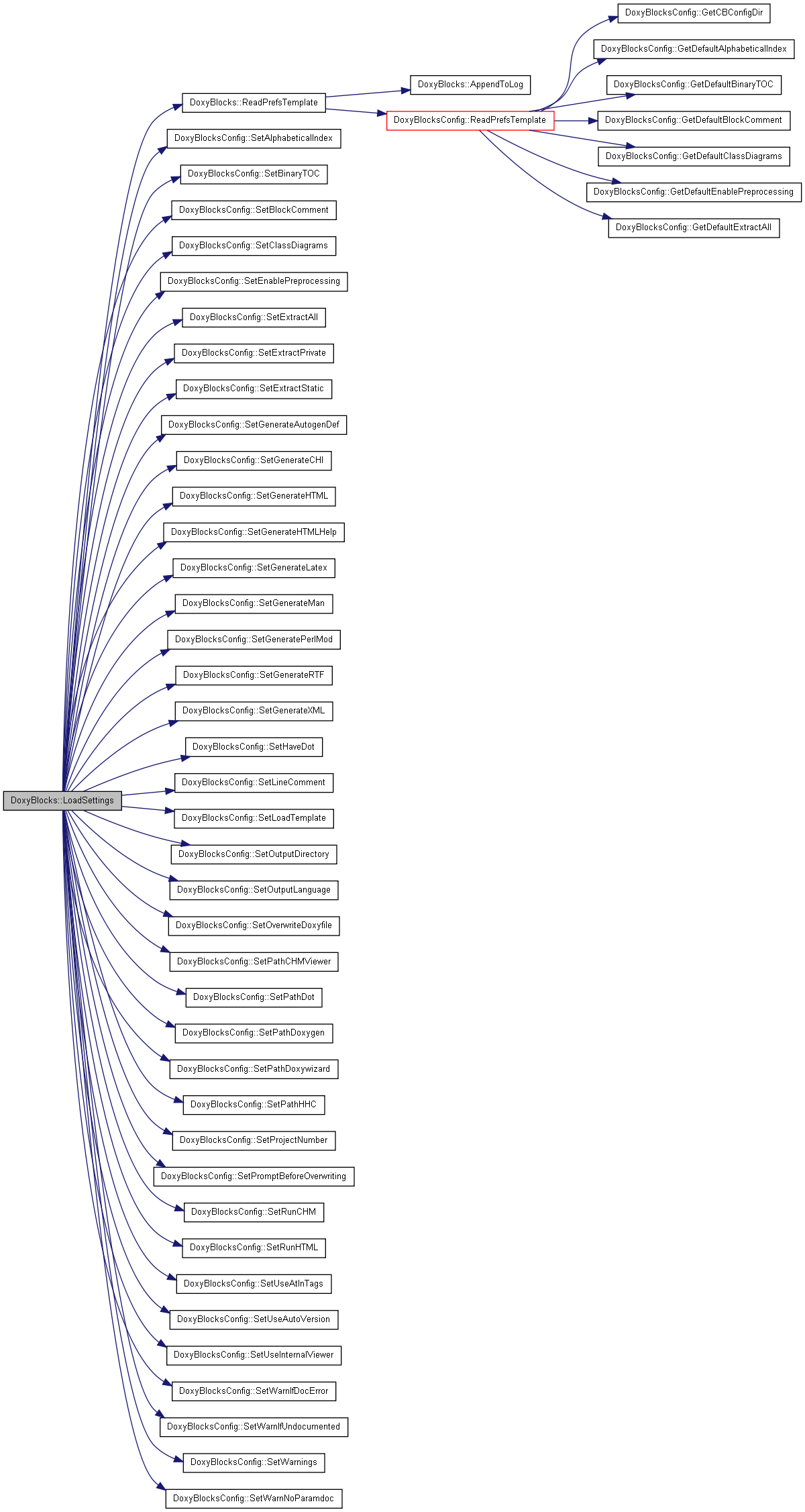

Here is the call graph for this function:

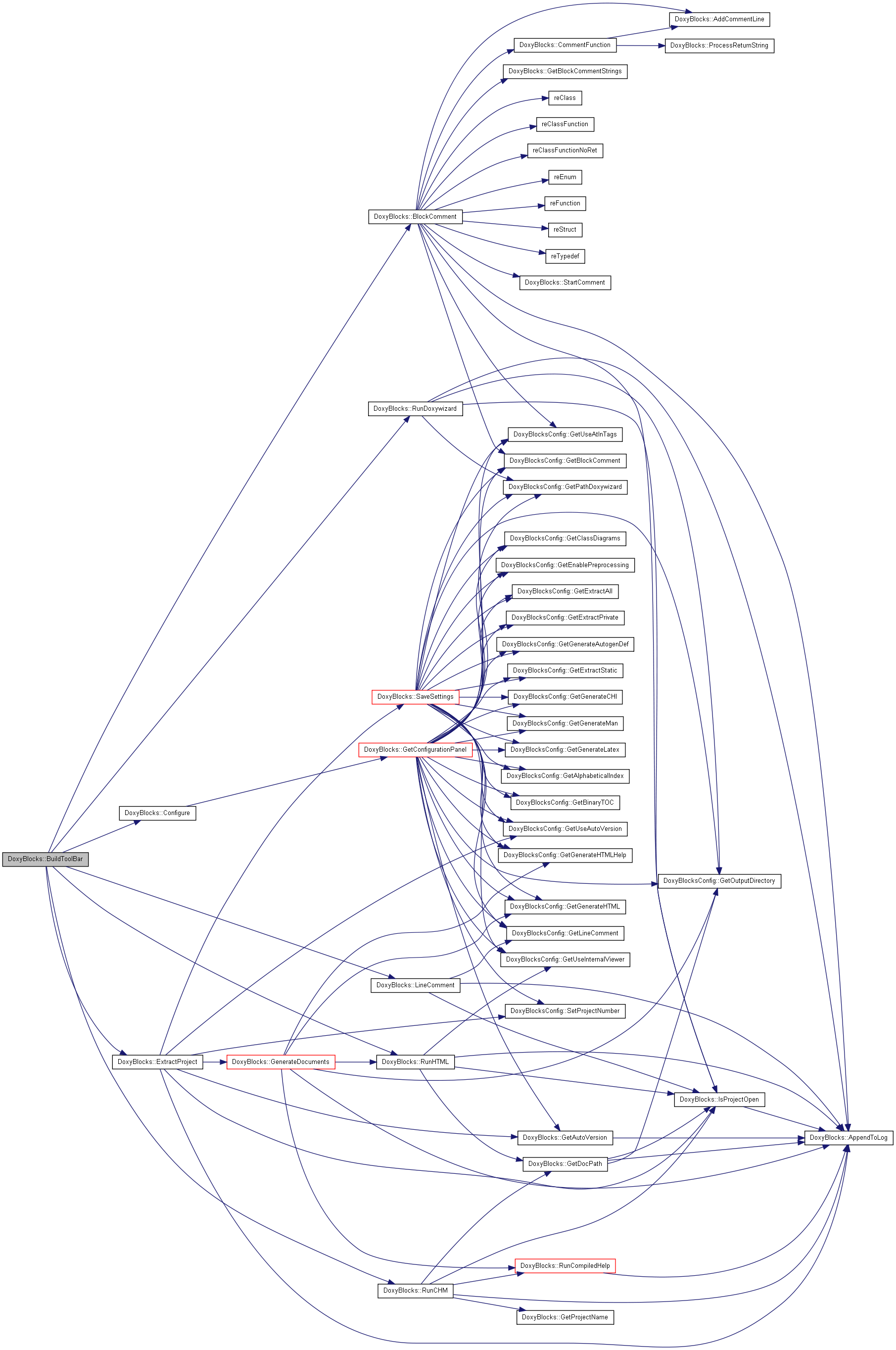

void DoxyBlocks::OnAttach ( ) [protected, virtual]

Any descendent plugin should override this virtual method and perform any necessary initialization. This method is called by Code::Blocks (PluginManager actually) when the plugin has been loaded and should attach in Code::Blocks. When Code::Blocks starts up, it finds and loads all plugins but does not activate (attaches) them. It then activates all plugins that the user has selected to be activated on start-up.
This means that a plugin might be loaded but not activated...
Think of this method as the actual constructor...

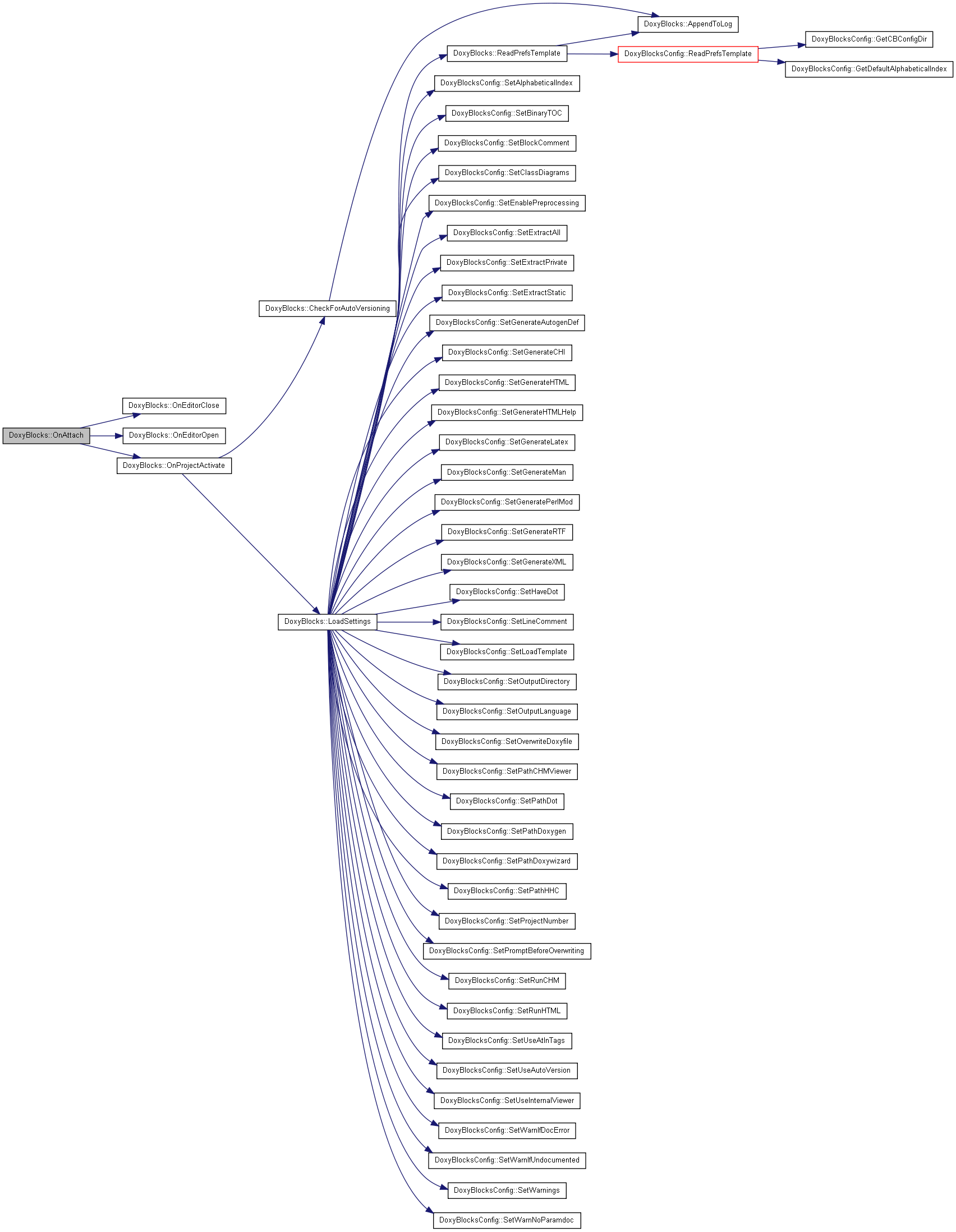

Here is the call graph for this function:

void DoxyBlocks::OnDialogueDone ( ConfigPanel * pDlg )

Save prefs before the dialogue closes.

Parameters:

pDlg

ConfigPanel* DoxyBlocks' configuration panel.

Returns:: void

void DoxyBlocks::OnEditorClose ( CodeBlocksEvent & event ) [private]

Hooks the editor close event.

Parameters:

event

CodeBlocksEvent& A CodeBlocks event object.

Returns:: void

Checks that there is at least one editor window open and disables the comment menu items and toolbar buttons if not.

void DoxyBlocks::OnEditorOpen ( CodeBlocksEvent & event ) [private]

Hooks the editor open event.

Parameters:

event

CodeBlocksEvent& A CodeBlocks event object.

Returns:: void

Checks that there is at least one editor window open and enables the comment menu items and toolbar buttons if so.

void DoxyBlocks::OnProjectActivate ( CodeBlocksEvent & event ) [private]

Hooks the IDE's project activated event.

Parameters:

event

CodeBlocksEvent& A CodeBlocks event object.

Returns:: void

Checks whether AutoVersioning is active for the activated project. Loads settings and inits the config object. Enables/disables toolbar and menu items.

Here is the call graph for this function:

void DoxyBlocks::OnRelease ( bool appShutDown ) [protected, virtual]

Any descendent plugin should override this virtual method and perform any necessary de-initialization. This method is called by Code::Blocks (PluginManager actually) when the plugin has been loaded, attached and should de-attach from Code::Blocks.
Think of this method as the actual destructor...

Parameters:

appShutDown

If true, the application is shutting down. In this case *don't* use Manager::Get()->Get...() functions or the behaviour is undefined...

void DoxyBlocks::OnTextURL ( wxTextUrlEvent & event ) [private]

A URL was clicked in the log window.

Parameters:

event

wxTextUrlEvent& The event object.

Returns:: void

Here is the call graph for this function:

void DoxyBlocks::OnUpdateUI ( wxUpdateUIEvent & event ) [private]

An UPDATE_UI event was raised.

Parameters:

event

CodeBlocksEvent& A CodeBlocks event object.

Returns:: void

Enables/disables the menu and toolbar items accordingly.

wxString DoxyBlocks::ProcessReturnString	(	wxString	sReturn,
		wxString	sFunction
	)			`[private]`

Parameters:

	sReturn	wxString Return statement string.
	sFunction	wxString Function name string.

Returns:: wxString The processed return string.

This function strips the keywords "static" and "inline" from the return statement and formats the rest, processing *, ** and & symbols so that the symbol follows the type name.

void DoxyBlocks::ReadPrefsTemplate ( ) [private]

Read the settings template.

Returns:: void

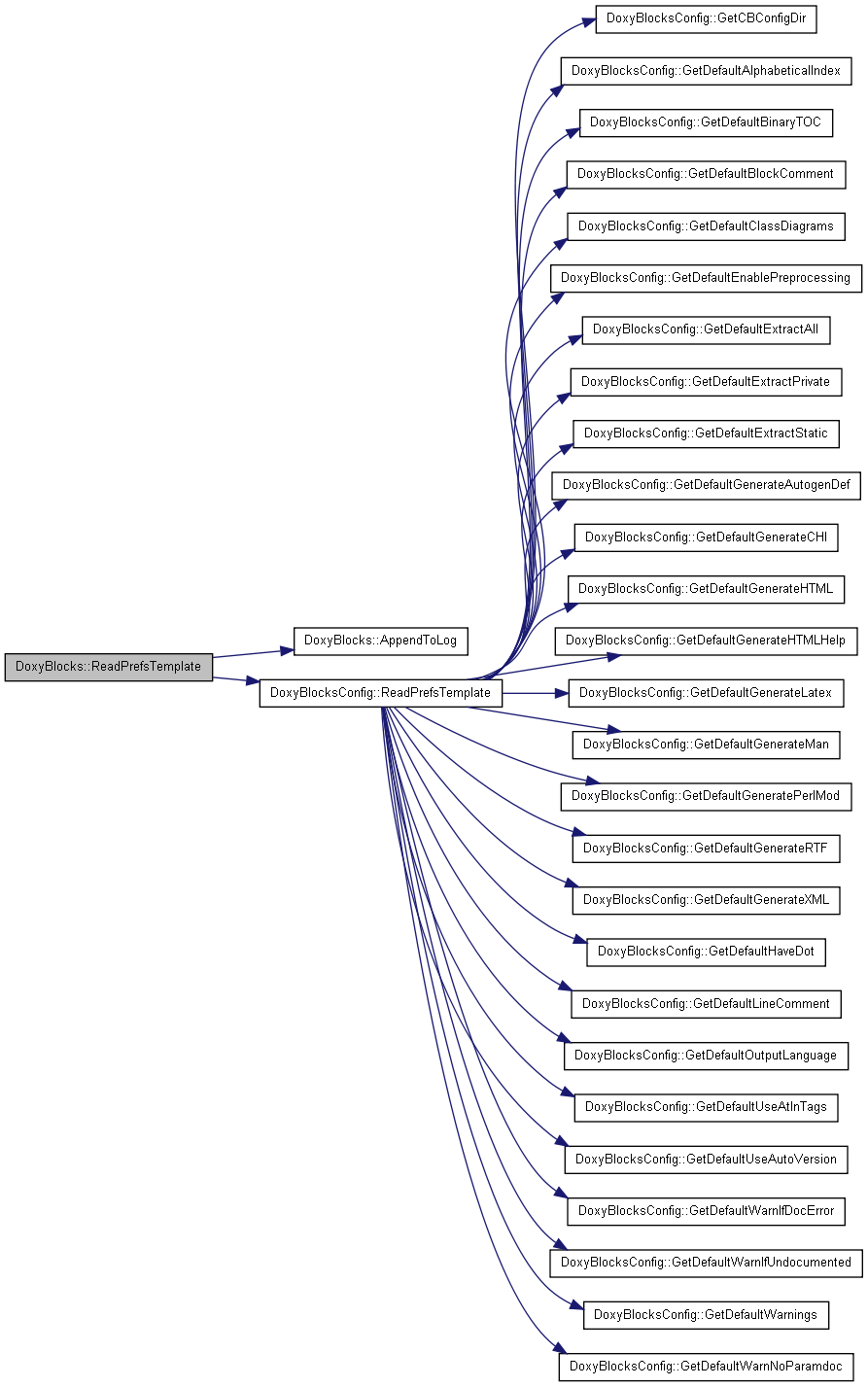

Here is the call graph for this function:

void DoxyBlocks::RunCompiledHelp	(	wxString	sDocPath,
		wxString	sPrjName
	)			`[private]`

Run the Compiled Help documentation.

Parameters:

	sDocPath	wxString The path to the CHM file.
	sPrjName	wxString The path to the project.

Here is the call graph for this function:

bool DoxyBlocks::RunDoxywizard ( void ) [private]

Run doxywizard. Load the project's doxyfile, if one exists.

Returns:: bool true on success, otherwise false.

Here is the call graph for this function:

void DoxyBlocks::RunHTML ( ) [private]

Run the HTML documentation.

This function checks configuration settings and either runs the HTML in the internal viewer or the default browser.

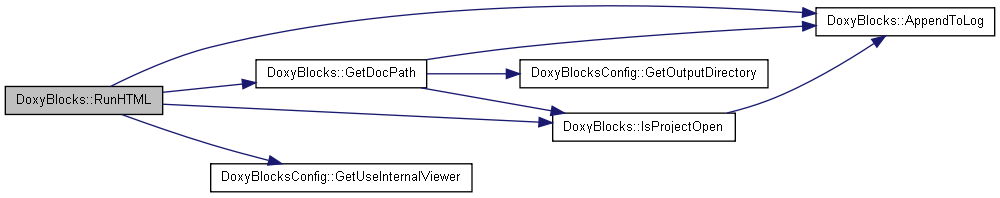

Here is the call graph for this function:

void DoxyBlocks::SaveSettings ( ) [private]

Save configuration settings.

Returns:: void

Settings that might change between projects are stored in the project file. Global settings are stored in C::B's config tree. Default values are not written.

Todo:: (Gary#3#): There's probably a more elegant way to avoid writing default vals.

Here is the call graph for this function:

void DoxyBlocks::StartComment	(	cbStyledTextCtrl *	control,
		int &	iPos,
		int	iBlockComment,
		wxString	sStartComment,
		wxString	sMidComment,
		wxString	sTagBrief,
		wxString	sIndent
	)			`[private]`

Insert the tags that begin a comment block in the selected style.

Parameters:

	control	cbStyledTextCtrl* The editor's wxStyledTextControl.
	iPos	int& The current editor position.
	iBlockComment	int The selected comment style.
	sStartComment	wxString The comment tag that starts a block.
	sMidComment	wxString The comment tag that starts each line in a block.
	sTagBrief	wxString The doxygen tag for a brief description.
	sIndent	wxString A string of spaces matching the function's indent level.

Returns:: void

wxString DoxyBlocks::ValidateRelativePath ( wxString path ) [private]

Validate the doxygen sub-directory name, removing dots, slashes, colons and tildes.

Parameters:

path

wxString The string to validate.

Returns:: wxString

void DoxyBlocks::WriteConfigFiles	(	cbProject *	prj,
		wxString	sPrjName,
		wxString	sPrjPath,
		wxString	sDoxygenDir,
		wxFileName	fnDoxyfile,
		wxFileName	fnDoxygenLog
	)			`[private]`

Write the doxygen configuration and log files.

Parameters:

	prj	cbProject* The project.
	sPrjName	wxString The project's name.
	sPrjPath	wxString The path to the project.
	sDoxygenDir	wxString The relative path to the doxygen files.
	fnDoxyfile	wxFileName Doxyfile filename object.
	fnDoxygenLog	wxFileName Doxygen log filename object.

TODO (Gary#1#): I should look at other macros for inclusion here.

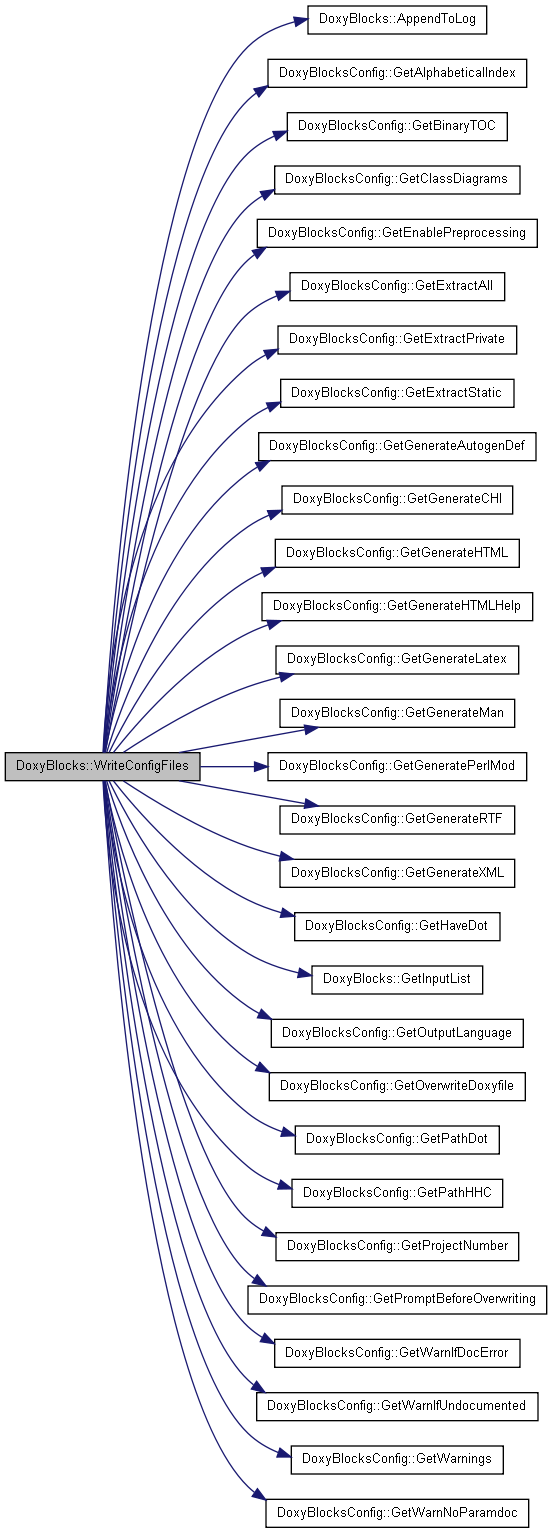

Here is the call graph for this function:

void DoxyBlocks::WritePrefsTemplate ( ) [private]

Write the settings template.

Returns:: void

Here is the call graph for this function:

The documentation for this class was generated from the following files:

DoxyBlocks Class Reference

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
